GNSS Compass
Precision Heading. Anywhere on Earth.

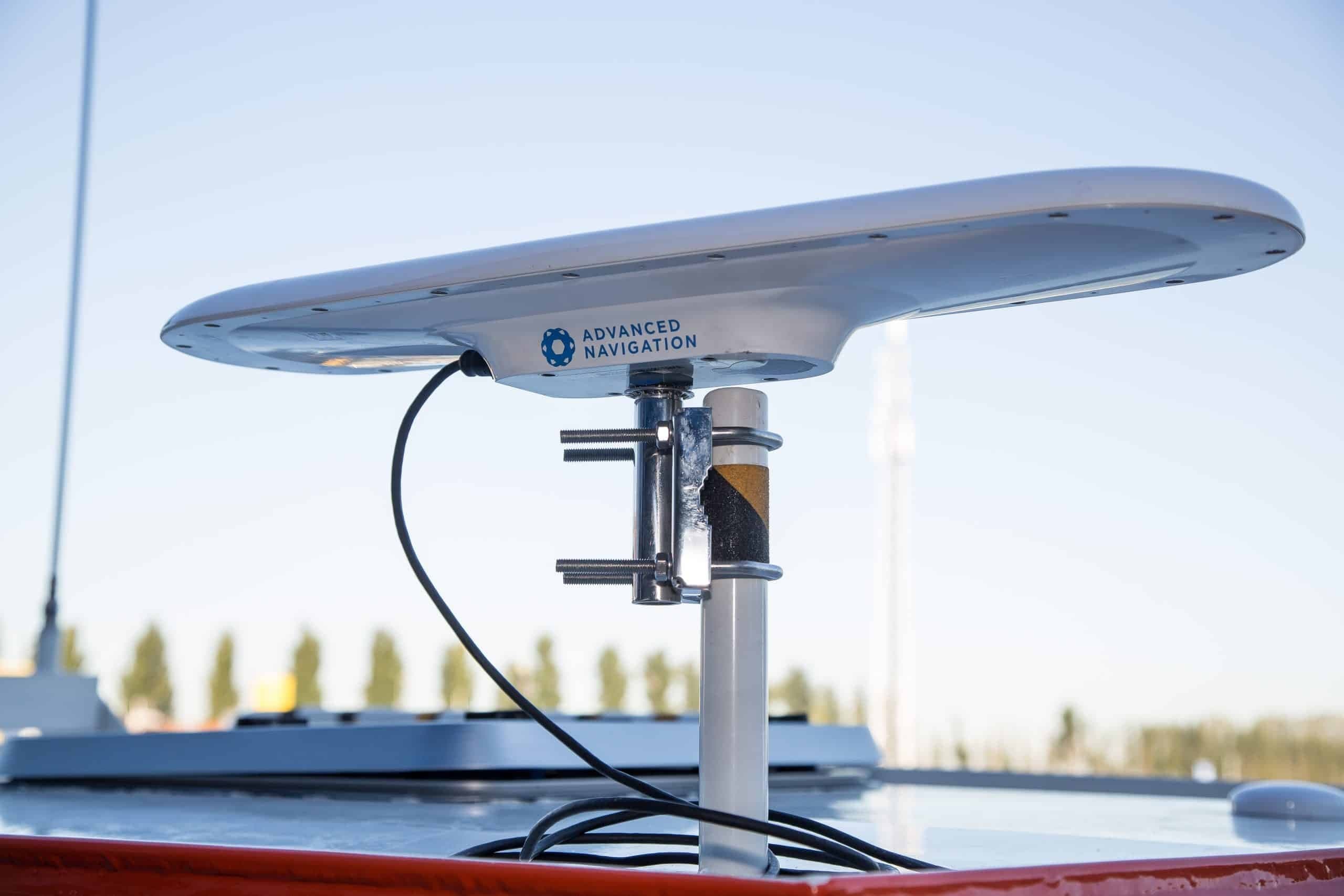

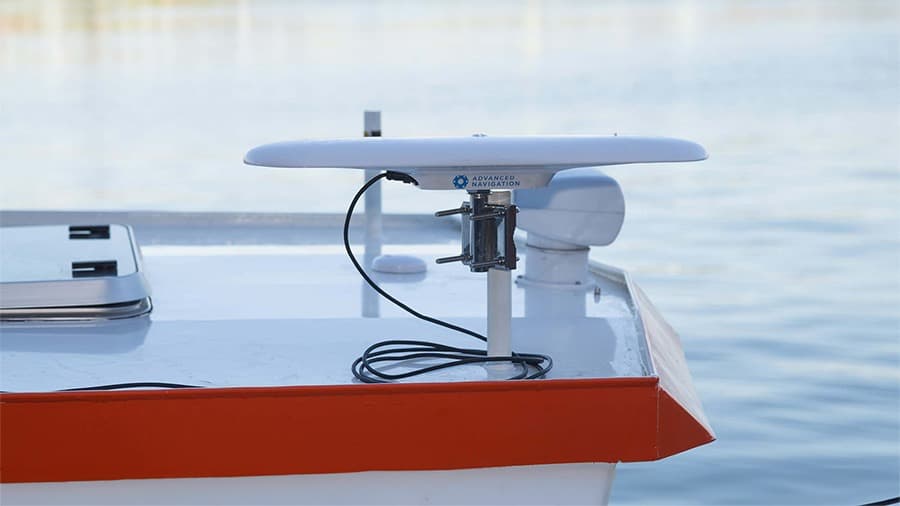

The GNSS Compass is a plug-and-play GNSS/INS navigation and heading solution. It delivers accurate dual-antenna GPS-based heading immune to magnetic interference and can maintain accurate heading through GNSS outages of up to 20 minutes. Features high-accuracy 1cm RTK positioning and is plug-and-play with NMEA 0183, NMEA 2000, and Ethernet interfaces. ITAR-free.
All-in-One Navigation Solution
GNSS Compass is an all-in-one GNSS/INS navigation and heading solution. It delivers accurate dual-antenna GPS-based heading that is immune to magnetic interference and can maintain accurate heading through GNSS outages of up to 20 minutes. It features high-accuracy 1cm RTK positioning and is plug-and-play with NMEA 0183, NMEA 2000, and Ethernet interfaces.
Key Features
Plug-And-Play
Full support for NMEA 2000 and NMEA 0183 with no configuration, setup, or calibration required — reliable position and heading within minutes.
GNSS Heading

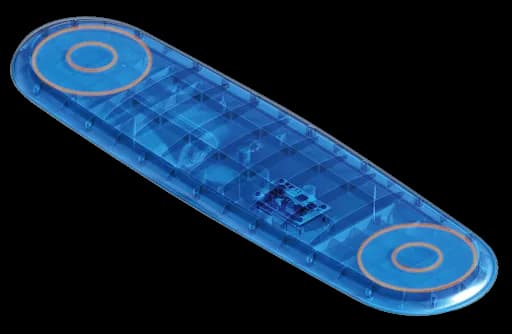

Dual GNSS antennas reliably determine true heading with high accuracy, without requiring motion and without susceptibility to magnetic interference.
Interface Options
Available in a serial variant (NMEA 2000/0183 for plug-and-play connection to existing marine systems) or a Power over Ethernet variant for simplified cabling and maximum flexibility in new installations.
Dual Frequency RTK GNSS
L1/L2 RTK delivers real-time position accuracy of 10mm, with support for GPS, GLONASS, GALILEO, and BeiDou satellite systems.
Time Server
A GPS-disciplined oscillator allows the unit to act as a high-accuracy time reference; the PoE variant supports both PTP and NTP for precise network-wide time synchronisation.
Applications
